CLEANER PRODUCTIVITY
Productivity is a key factor to
determine manufacturing effectiveness.
Our mission is to help factories
achieve it without compromising safety and health.

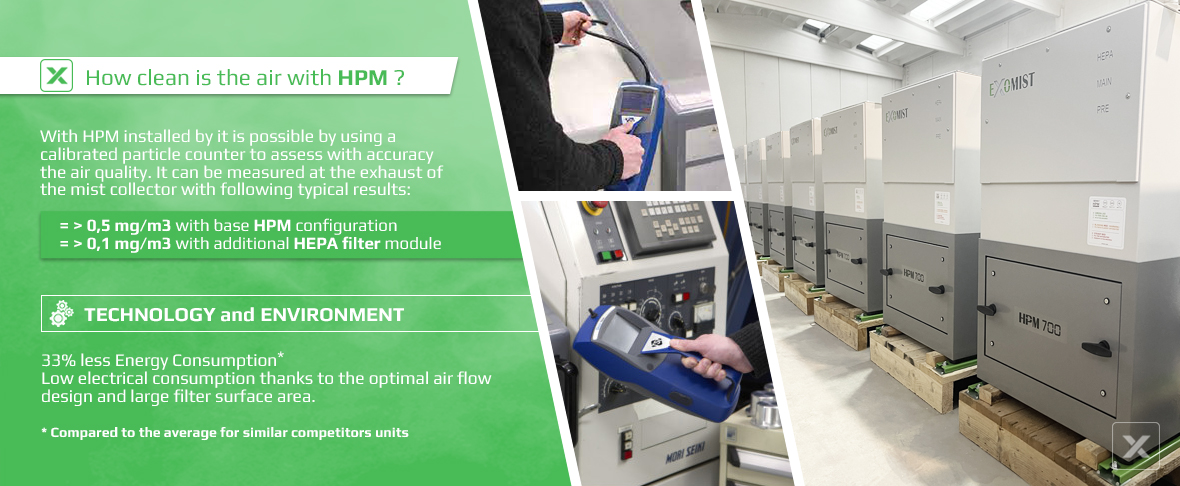

AIR QUALITY
HPM
SERIES

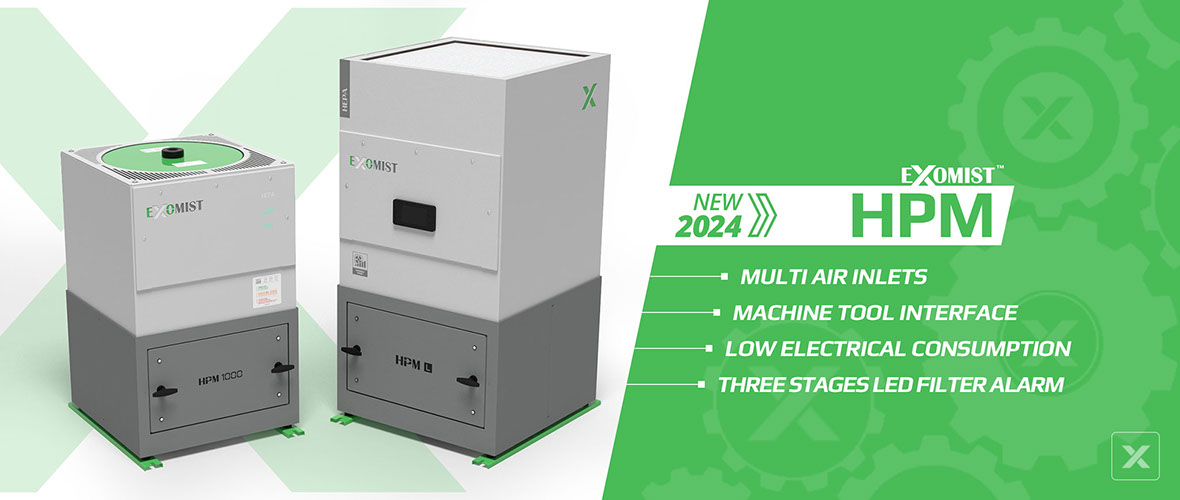

HIGH PERFORMING MIST COLLECTORS

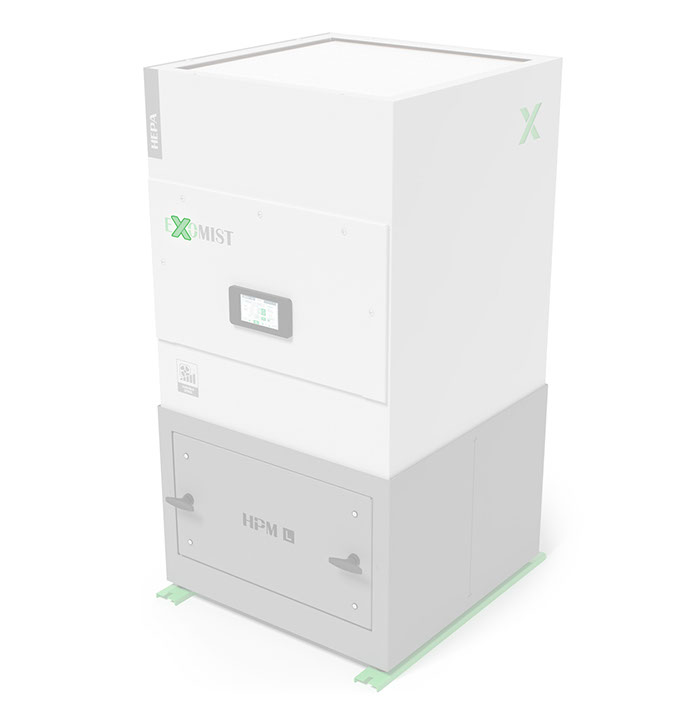

LED MULTI-SIGNAL
To clearly indicate when HPM
is on and working or to report operating anomalies.

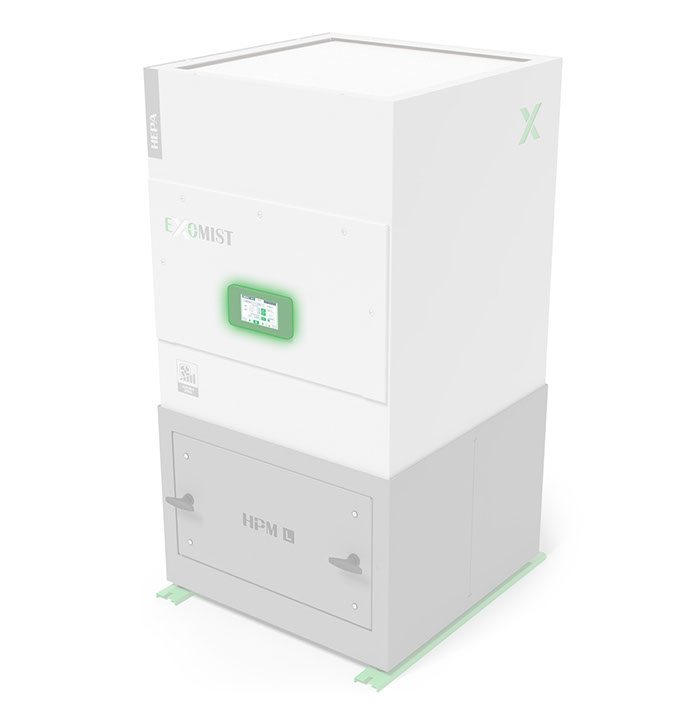

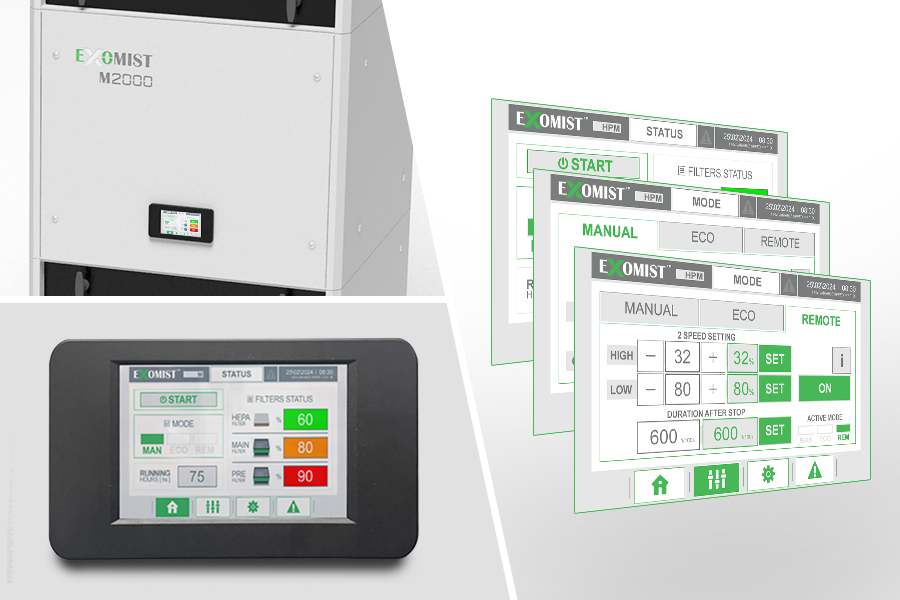

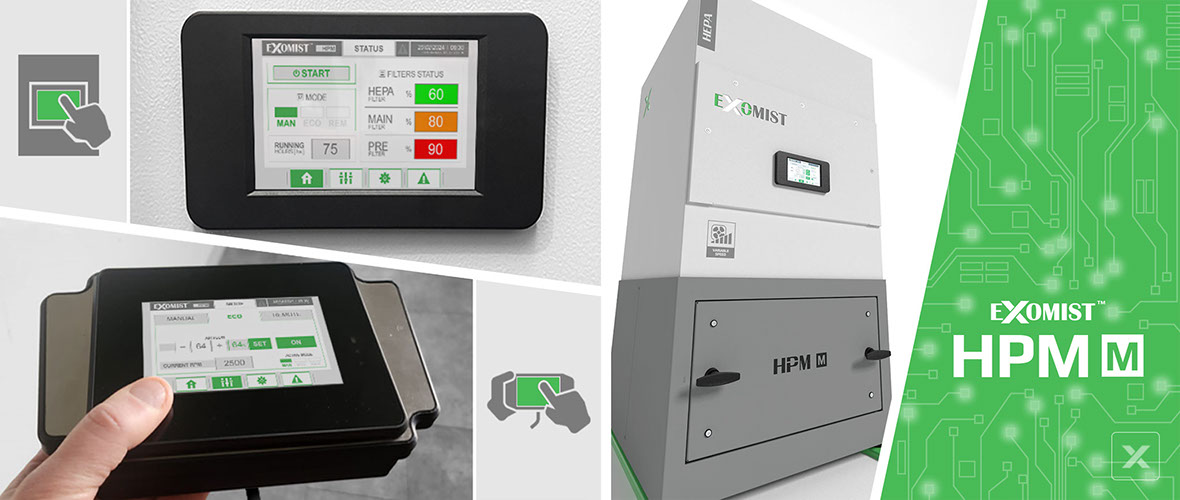

REMOVABLE TOUCH SCREEN
Ideal for controlling HPM once installed on vertical stand and or top of the machine tool.

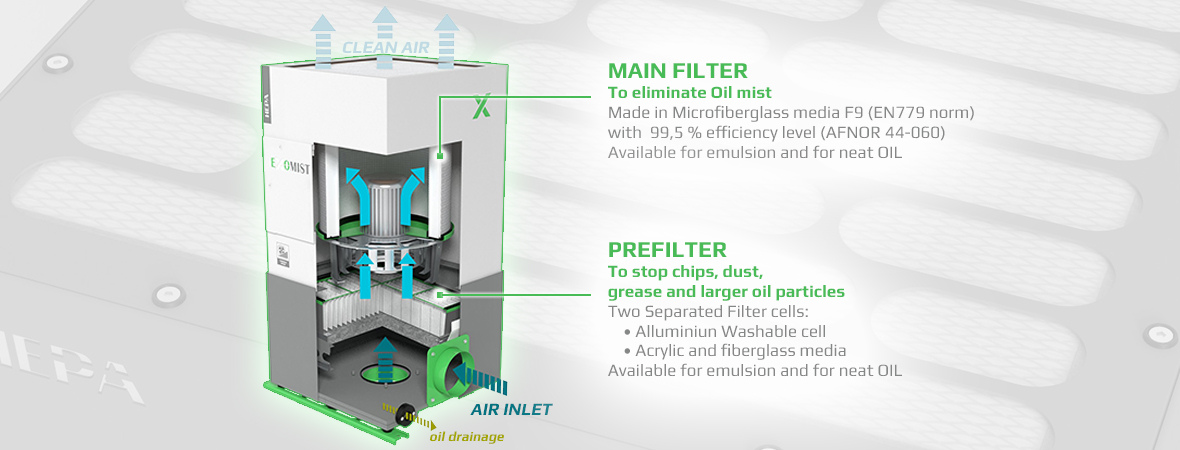

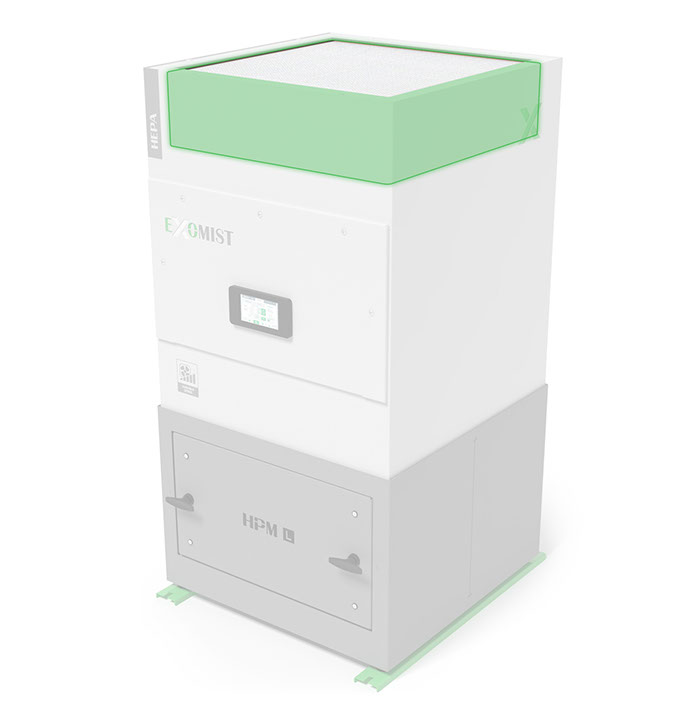

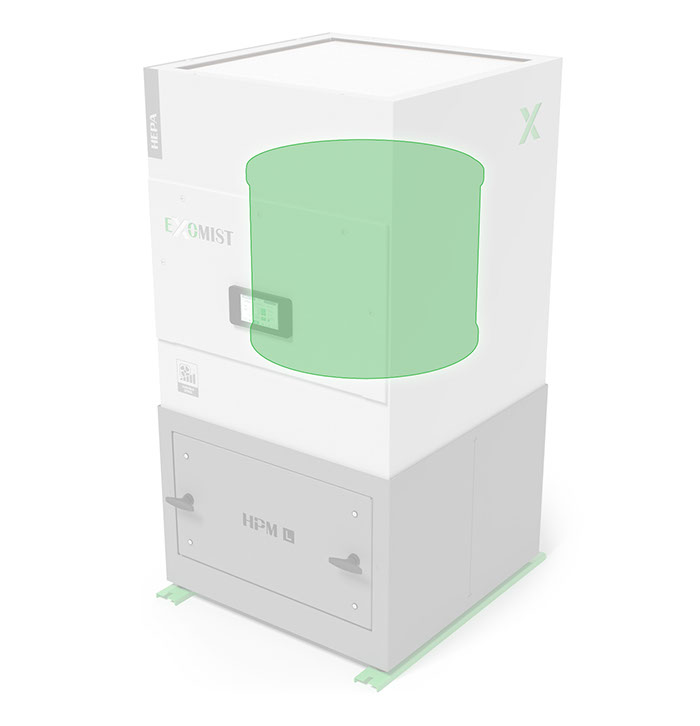

MAIN FILTER
Fiberglass Media to eliminate fine mist with 99 % Efficiency (AFNOR 44-060). The filter cartridge is plastic made. Light and easy to dispose. Specific versions available for emulsion and for neat OIL.
OPTIONAL HEPA FILTER
To eliminate vapors and or dry smoke.
PREFILTER SECTION

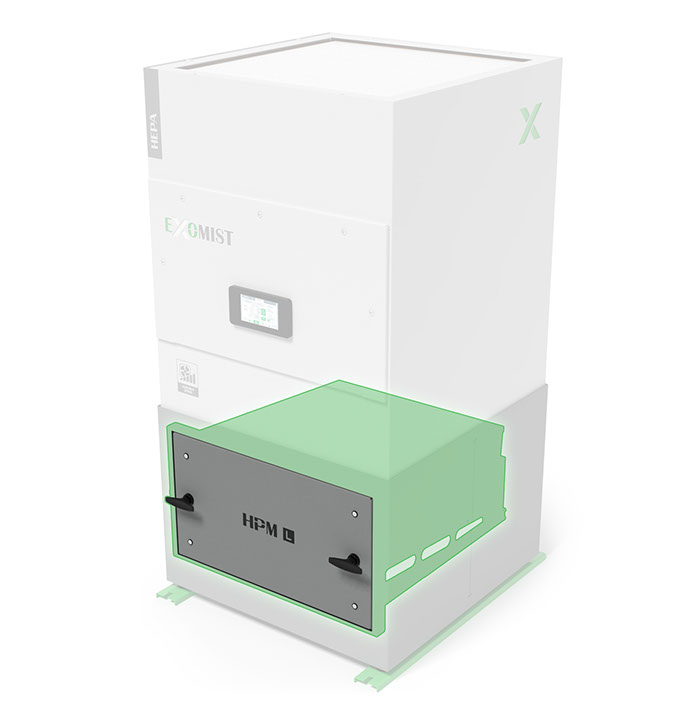

Effective opening system on linear guide for easy and direct access.
Standard washable Metallic mesh cell to stop grease and metal chips and one cell available for emulsion and/or for neat OIL.

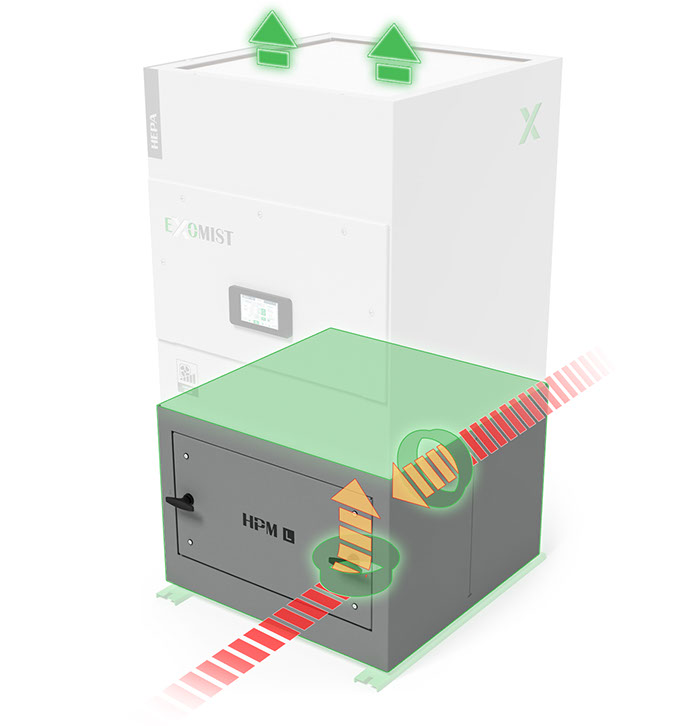

MULTI INLET SIDE
5 inlet possibilities to match every possible installation need.
Vertical or on each of the 4 sides thanks to the innovative rotating logic.

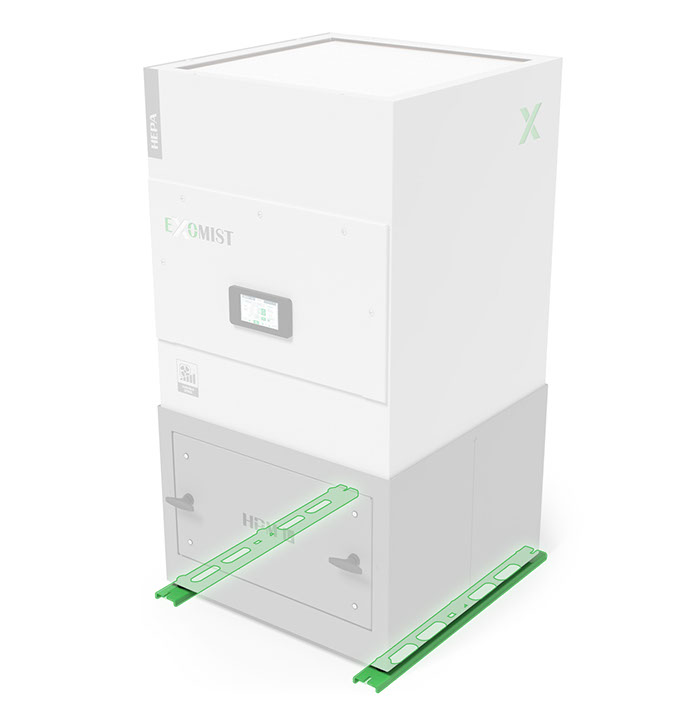

DETACHABLE RAILS
To allow different possible installation points on the machine tool.
INLET TO DRAINAGE

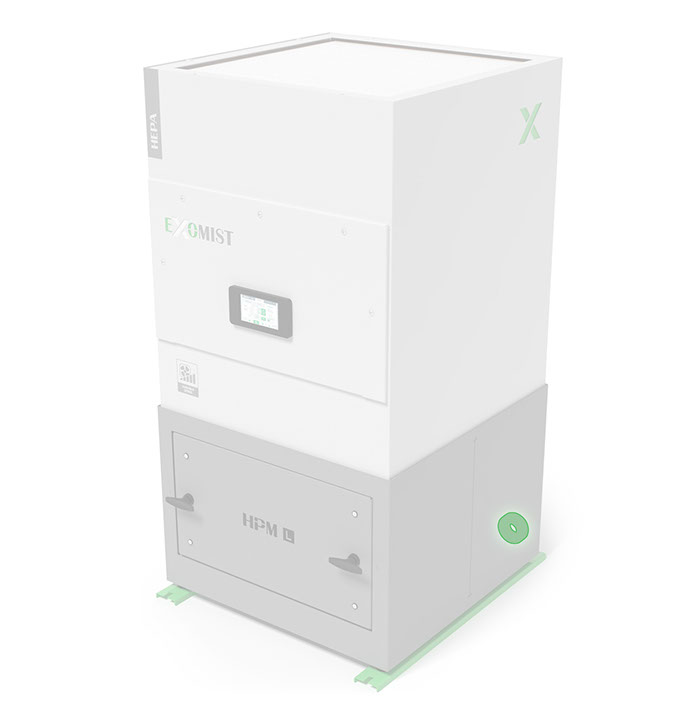

Removable inlet connector.
Threaded drainage outlet connector for optimal set up.
SELECT THE BUTTONS TO SEE DETAILS
Wide Range

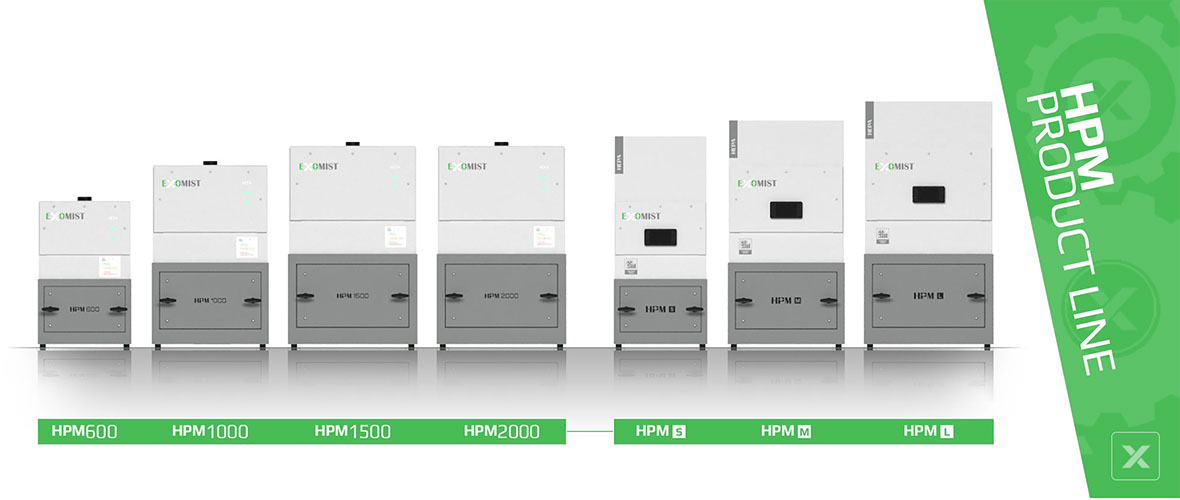

5 models from 600 to 2000 m3/h
to ensure proper matching
between machine tool model
and mist collector size.
Optionals
Custom External control box for
interface with machine tool PLC.
● Remote relay
● Thermal switch
Custom frames and
stands for installation.
..more info?
Download the Exomist
HPM digital brochure..
Exomist HPM
Why HPM?
The right solution for heavy duty applications with considerable amounts of pollution to be eliminated.
Simple and effective management system. Hepa ready for a simple
and easy upgrade.
TECHNICAL DATA OF THE EU AND USA VERSION
EU
USA
HPM S
*300/490
650
58
76
**0,30
IE5
125
HPM M
*500/973
930
61
94
**0,40
IE5
150
HPM L
*1000/1980
1800
66
121
**1,26
IE5
200
NOMINAL AIR FLOW RATE (m3/h)
STATIC PRESSURE (Pa)
SOUND LEVEL (dB)
WEIGHT (Kg)
MOTOR (kW)
MOTOR RATING
MOTOR VOLTAGE (V)
INLET DIAMETER (mm)
RAL
HPM 1500
1450
1100
75
105
1,10 IE2
IE3
200
HPM 2000
1870
1700
77
107
1,50 IE2
IE3
200
HPM 1000
890
930
72
80
0,55
IE2
150
HPM 600
550
650
65
66
0,37
IE2
125
*MIN - MAX RANGE | **ACTUAL CONSUMPTION
EC TYPE 200-270 / 1 / 50
7035 / 7037
400 / 3 / 50
7035 / 7037
HPM S
*180/360
650
66
145
**EC 0.3
IE4
5
HPM M
*350/700
930
73
176
**EC 0.4
IE4
6
HPM L
*650/1200
180
76
231
**EC 1.26
IE5
8
NOMINAL AIR FLOW RATE 60Hz (cfm)
STATIC PRESSURE (Pa)
SOUND LEVEL (dB)
WEIGHT (Lbs)
MOTOR (kW)
MOTOR RATING
INLET DIAMETER (iches)
RAL
HPM1000
990
1265
76
231
1.1 IE2
IE3
8
HPM1200
1100
1750
78
235
1.5 IE2
IE3
8
HPM700
630
1070
73
176
0,55
IE2
6
HPM400
360
748
66
145
0,37
IE2
5
7035 / 7037
7035 / 7037
*MIN - MAX RANGE | **ACTUAL CONSUMPTION
The vertical layout is ideal for optimizing air flow and reduce pressure drop.
The filtration effect is progressive to maximize filters lifetime.

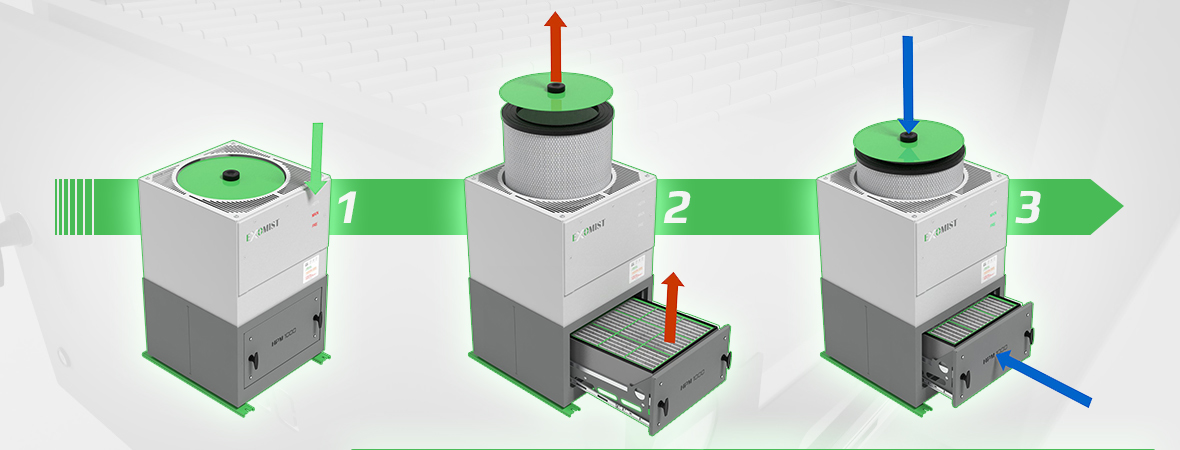

THREE STEPS 60 SECONDS MAINTENANCE
Remove prefilter
and or main filter
Replace prefilter
and or main filter
Check main and
prefilter LED\gauges
to see saturation
1
2
3
B
A
C

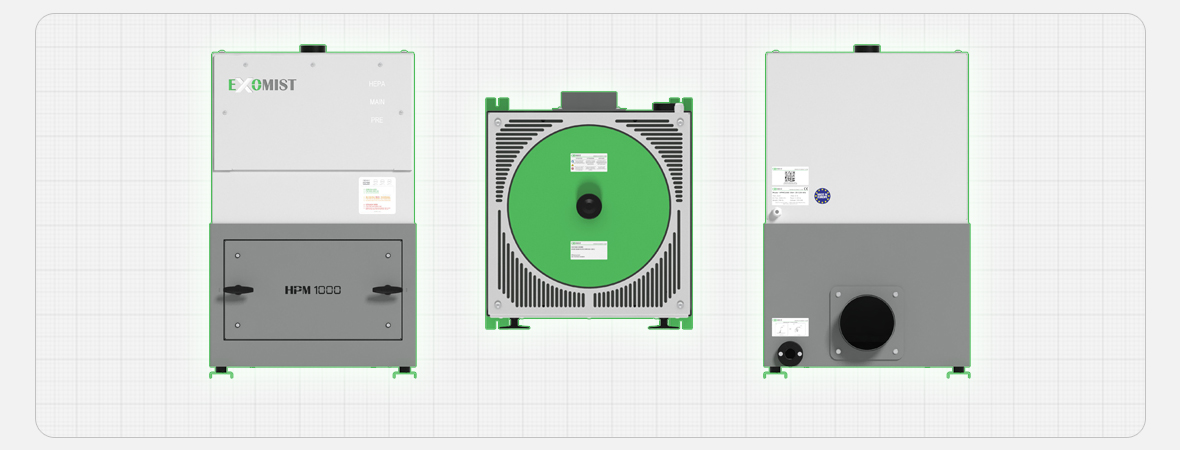

FRONT
TOP
BACK
DIMENSIONS OF THE EU AND USA VERSION
EU
USA
HPM S
1045
440
440
HPM M
1145
550
550
HPM L
1215
620
620
HPM 1500
990
620
620
HPM 2000
990
620
620
A (mm)
B (mm)
C (mm)
HPM 600
820
440
440
HPM 1000
890
550
550
HPM S
30.8
17.6
17.6
HPM M
34.3
19.5
19.5
HPM L
37.8
23.4
23.4
HPM 1000
37.8
23.4
23.4
HPM 1500
37.8
23.4
23.4
A (inches)
B (inches)
C (inches)
HPM 400
30.8
17.6
17.6
HPM 700
34.3
19.5
19.5
3D ANIMATION
WORKING DIAGRAM
MAINTENANCE
DIMENSIONS
M
SERIES
MODULAR MIST COLLECTORS
M
SERIES

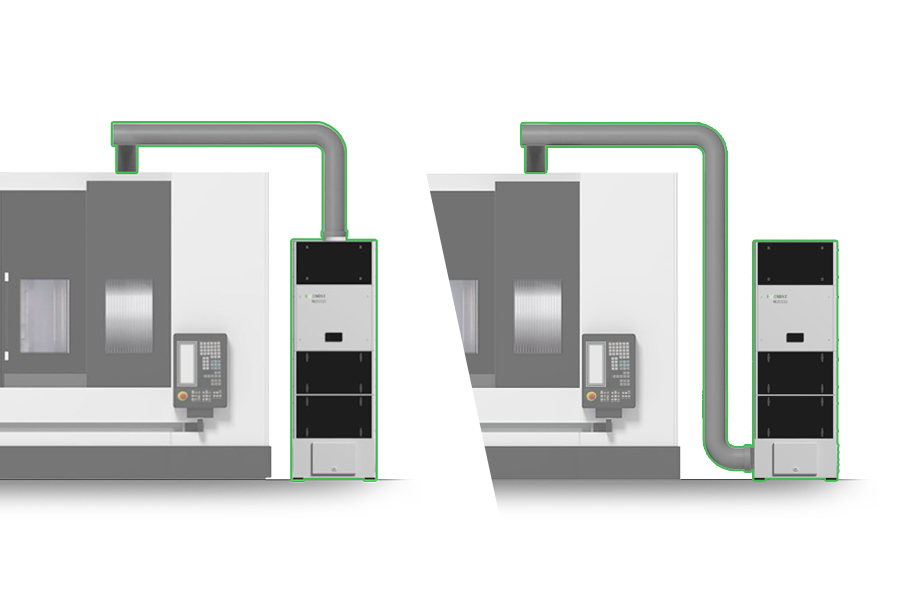

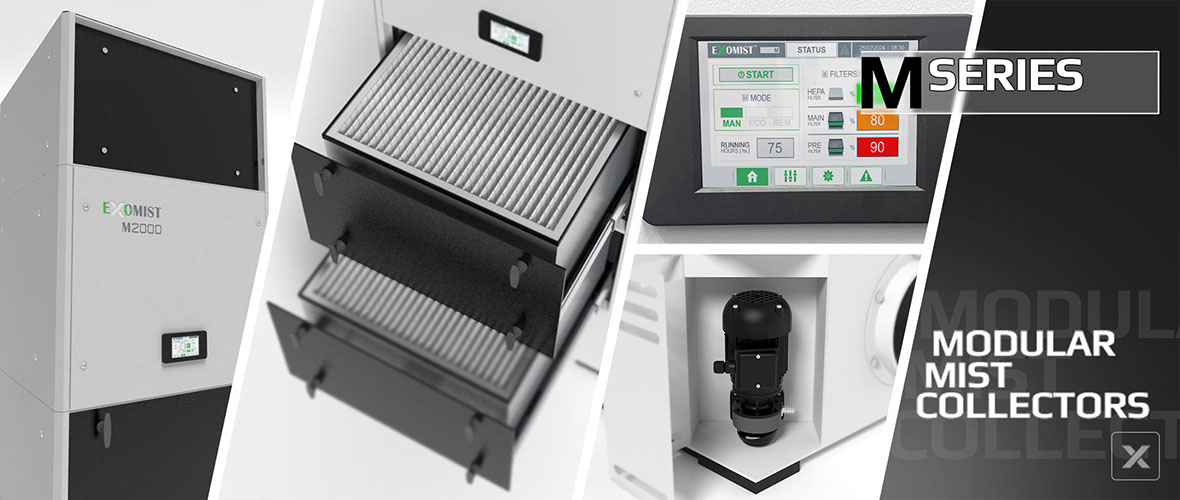

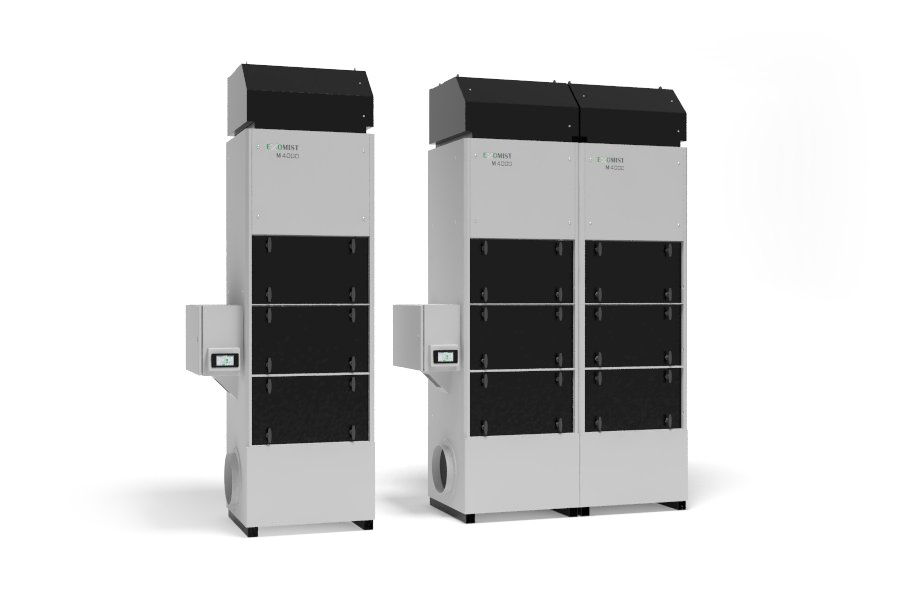

Exomist M is complete product series of oilmist collectors for large machine tools or centralized system. It is a modular system based upon M4000 base unit that allows maximum combination of filtration stages and air flow rates.
| PATENT PENDING |
Exomist Mseries
..more info?
Download the
Exomist Mseries
brochure..

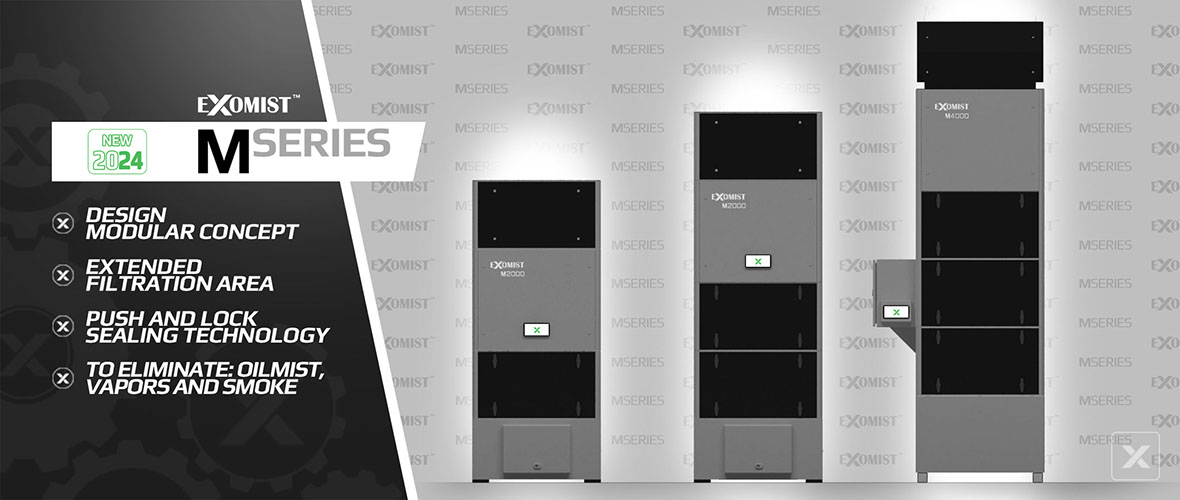

MODULAR CONCEPT DESIGN

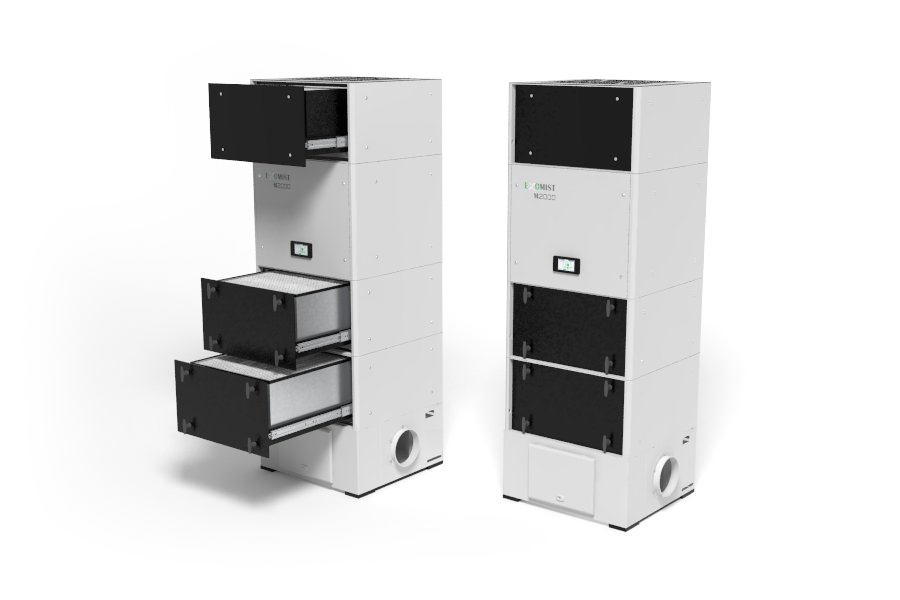

EXTENDED FILTRATION AREA
PUSH AND LOCK SEALING TECHNOLOGY
TO ELIMINATE: OILMIST, VAPORS AND SMOKE
TECHNOLOGY

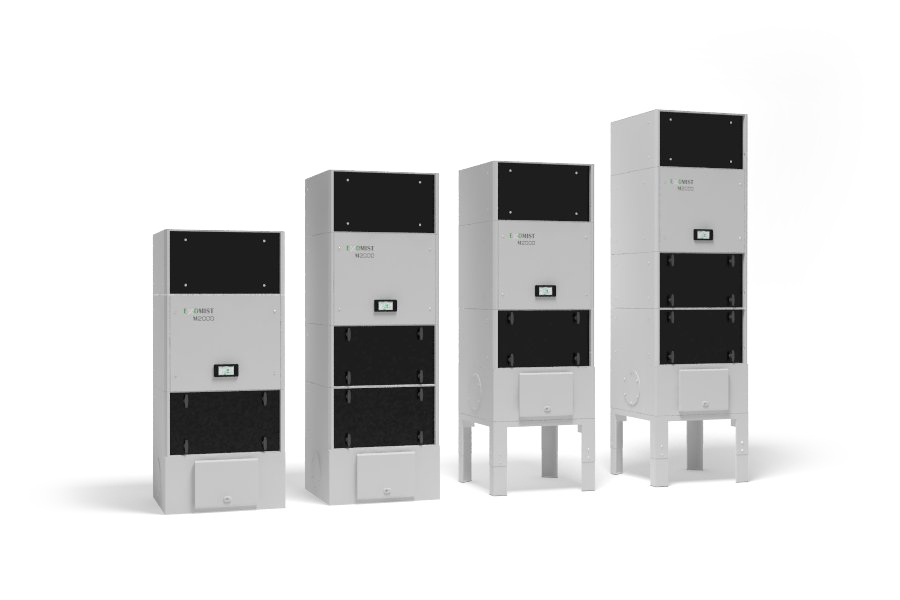

M 2000.2 M 2000.3 M 4000 M 8000
MSERIES
PUSH and LOCK
DRAINAGE PUMP

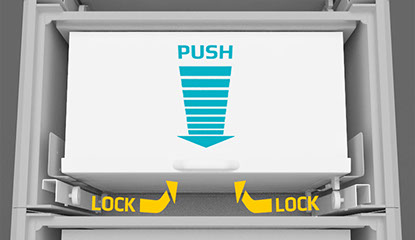

Innovative system (PATENT PENDING) that allows automatic sealing of the filter with a single move.

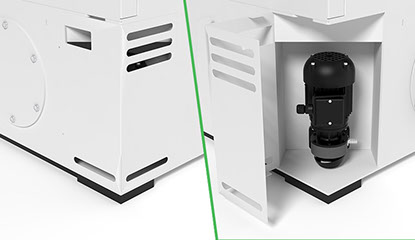

Integrated pump to convey accumulated drained coolant back to the tank of the machine tool. Automatic operation with float level system.
EXO
CLEAN

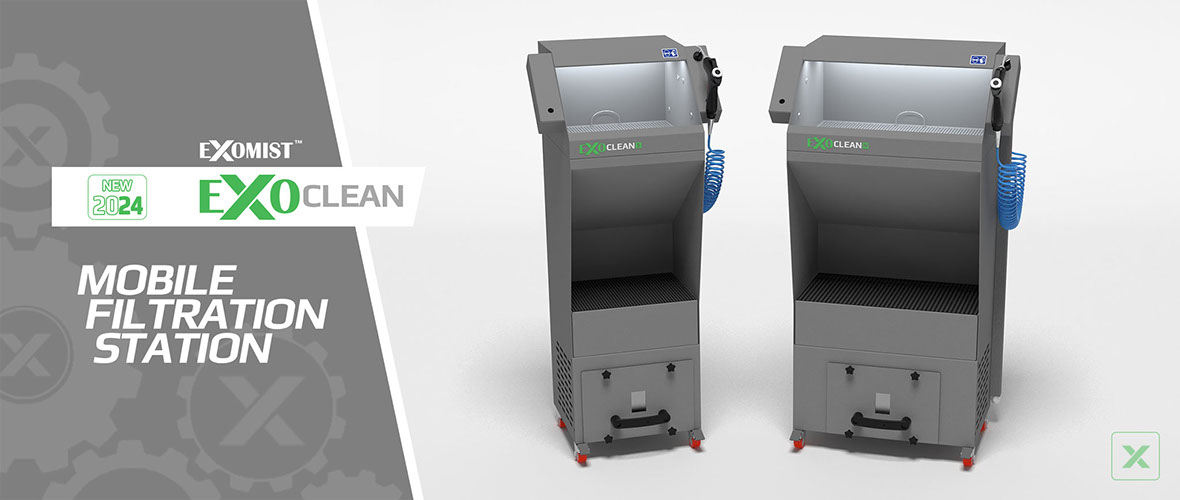

MOBILE FILTRATION STATION
an compact mobile filtration station
that ensure safe process
of BLOWING OILY PARTS
PREVENTS OPERATOR FROM BREATHING
DANGEROUS POLLUTANTS
REDUCED ELECTRICAL CONSUMPTION
(0,14 kW)
PLUG AND PLAY AND QUIET
(< 68 dB)
KEEPS FACTORY CLEAN

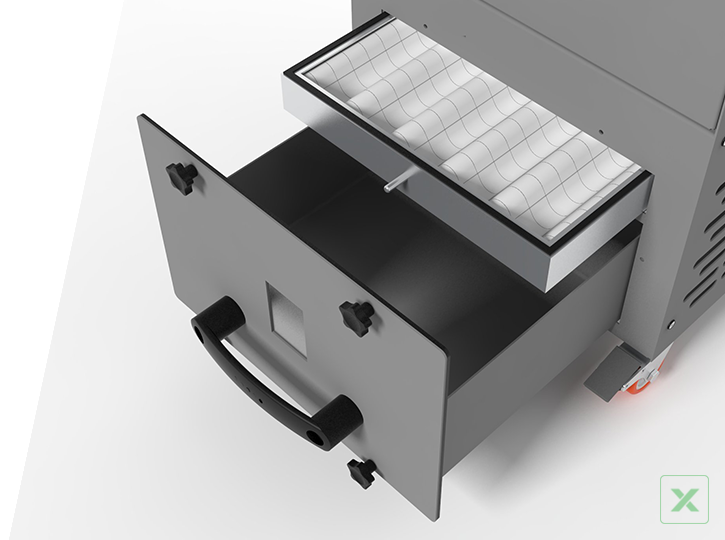

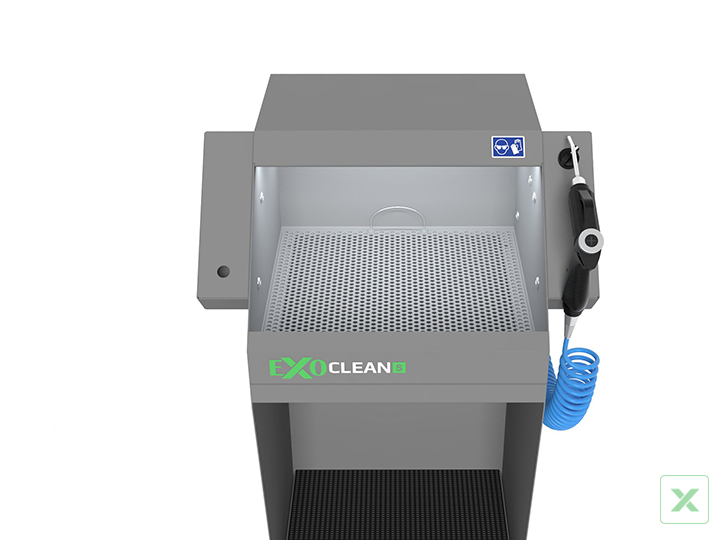

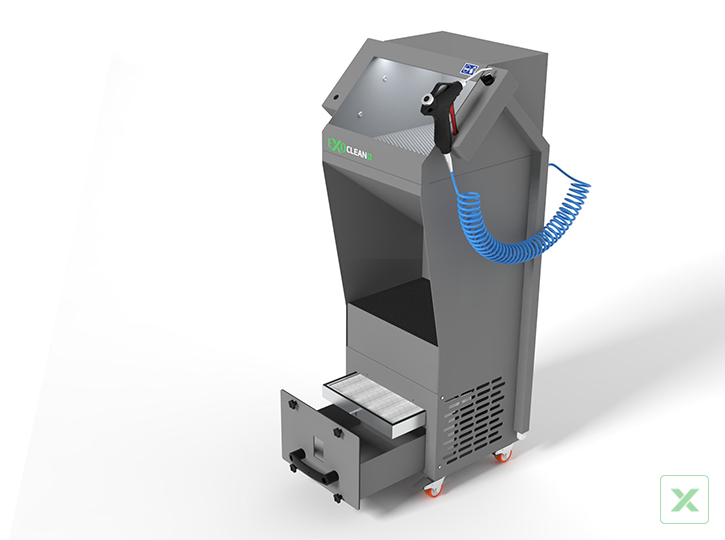

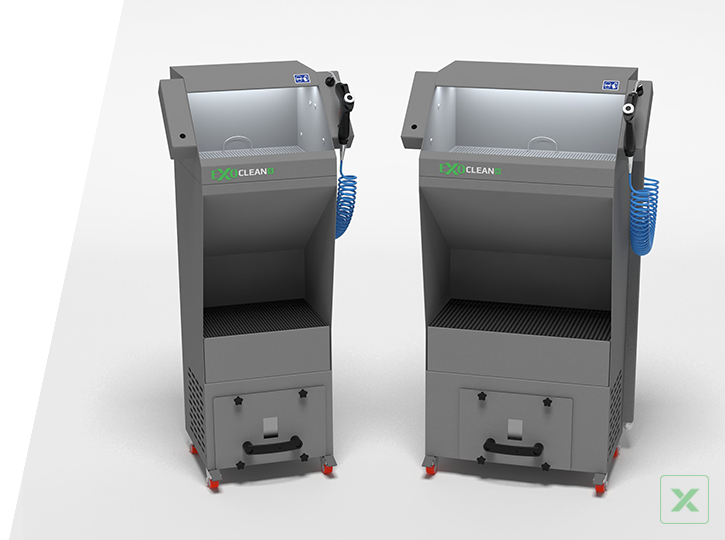

ExoClean is a compact mobile filtration station that ensure safe process of blowing oily parts. ExoClean is available in two versions: S the most compact model suitable for blowing pieces up to 20 cm and M useful for blow pieces up to 30 cm.
..more info?
Download the
ExoClean
brochure..
new 2024
about-us
EXOTUT srl
A experienced Team with consolidated technical and marketing knowledge in the field of oil mist collection and air filtration.
ExoMist products are designed
with particular Attention to:
EASY INTERFACE WITH MACHINE TOOL
MODERN DESIGN
EASY MANAGEMENT
OEM TOTAL CUSTOM SOLUTION DESIGN
